Size : 48×48
Panel Cutout : 44×44
Display : Upper : 7 Segment, 4 Digit, 0.39″, Red LED for Timer Value Lower : 7 Segment, 4 Digit, 0.28″, Green LED for Set Time

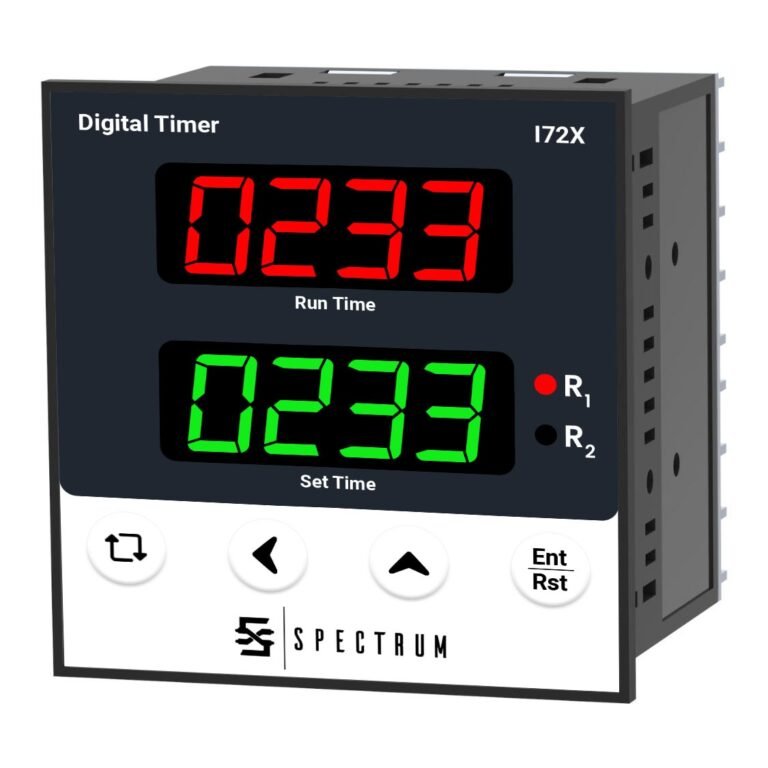

Size : 72×72
Panel Cutout : 68×68
Display : Upper : 7 Segment, 4 Digit, 0.4″, Red LED For Time Lower : 7 Segment, 4 Digit, 0.4″, Green LED For Set Time
Size : 96×96
Panel Cutout : 92×92
Display : Upper : 7 Segment, 4 Digit, 0.56″, Red LED For Time Lower : 7 Segment, 4 Digit, 0.4″, Green LED For Set Time
Start Pulse :
Proxy/Micro switch/Limit Switch
Type :
Power ON/ Eable /Trigger
Sec : 0 ~ 9.9999/999.9/9999 Sec
Min : 0 ~ 99.59/999.9/9999 Min/Sec
Hr : 0 ~ 99.59/999.9/9999 Hr/Min
Output 1 : 2- Relay,
Rating : 1C / O , 5A, 230 Vac
SSR/Buzzer : 112V DC (30m A DC) Approximately (Factory Set)
Forward – Reverse Mode, Cyclic Mode, Combinational Mode, Sequential Mode
Up/Down Configurable
Memory Retention Configurable
Auto/ Manual Reset facility from Front & Back
230V AC, 50 Hz Linear
ABS Polycarbonate
0 to 55 Degree Celsius
Up to 95% RH Non Condensing
