Digital Timer

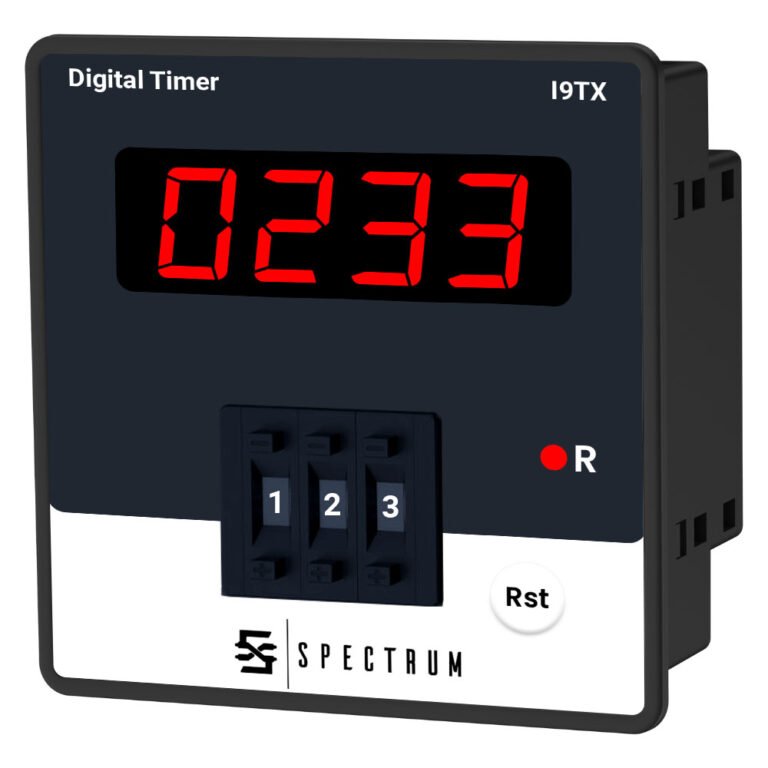

Thumb Wheel Timer Full Features

Inputs

Start Pulse at Back

Range

0~99.9/0~999 Min/Sec Configurable

Outputs

Output 1 : 1 – Relay,
Rating : 1C / O , 5A, 230 Vac
SSR/Buzzer : 112V DC (30m A DC) Approximately (Factory Set)

Set Point

Single Set Point

Counting Direction

Up/Down Configurable

Operating Mode

Delayed On/ Instant On Configurable

Memory

Memory Retention Configurable

Reset

Auto/ Manual Reset facility from Front & Back

Supply

230V AC, 50 Hz Linear

Body Type

ABS Polycarbonate

Operating Temp

0 to 55 Degree Celsius

Relative Humidity

Up to 95% RH Non Condensing
