Size : 72×72
Panel Cutout : 68×68

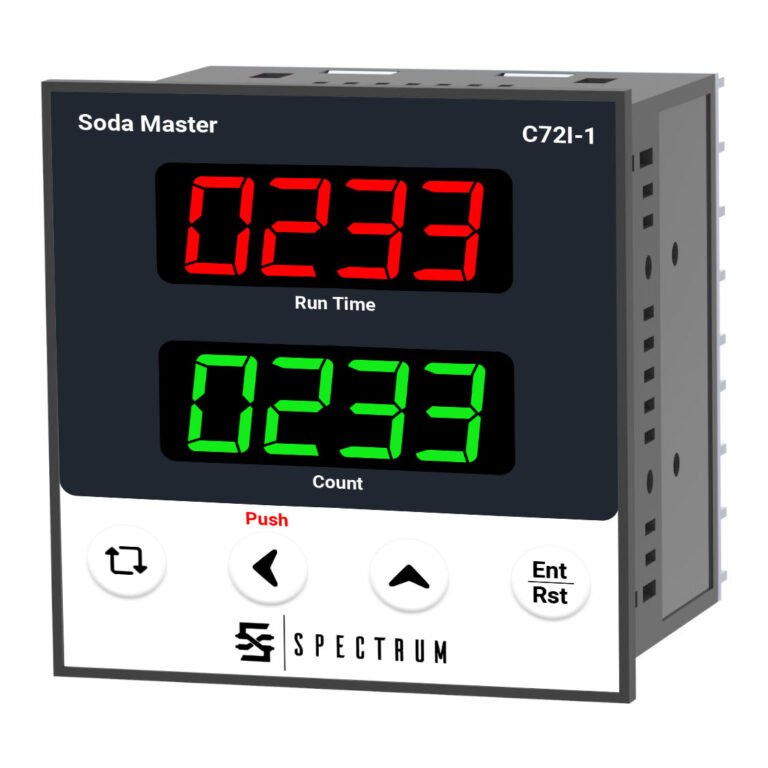

Display : Upper : 7 Segment, 4 Digit, 0.39″, Red LED For Time Lower : 7 Segment, 4 Digit, 0.39”, Green LED For Total Count
Size : 72×72
Panel Cutout : 68×68
Display : Upper : 7 Segment, 4 Digit, 0.39″, Red LED For Time Lower : 7 Segment, 4 Digit, 0.39”, Green LED For Total Count
Start Pulse : Proxy/Micro switch/Limit Switch
Type : Trigger
Sec : 0 ~ 9.9999/999.9/9999 Sec
Min : 0 ~ 99.59/999.9/9999 Min/Sec
Output 2 : 1- Relay,
Rating : 1C / O , 10A, 230 Vac
SSR/Buzzer : 12V DC (30m A DC) Approximately (Factory Set)
Up/Down Configurable
Memory Retention Configurable
Auto/ Manual Reset facility from Front & Back
230V AC, 50 Hz Linear
ABS Polycarbonate
0 to 55 Degree Celsius
Up to 95% RH Non Condensing
