Soda Master

Single Input / Double Output Economy

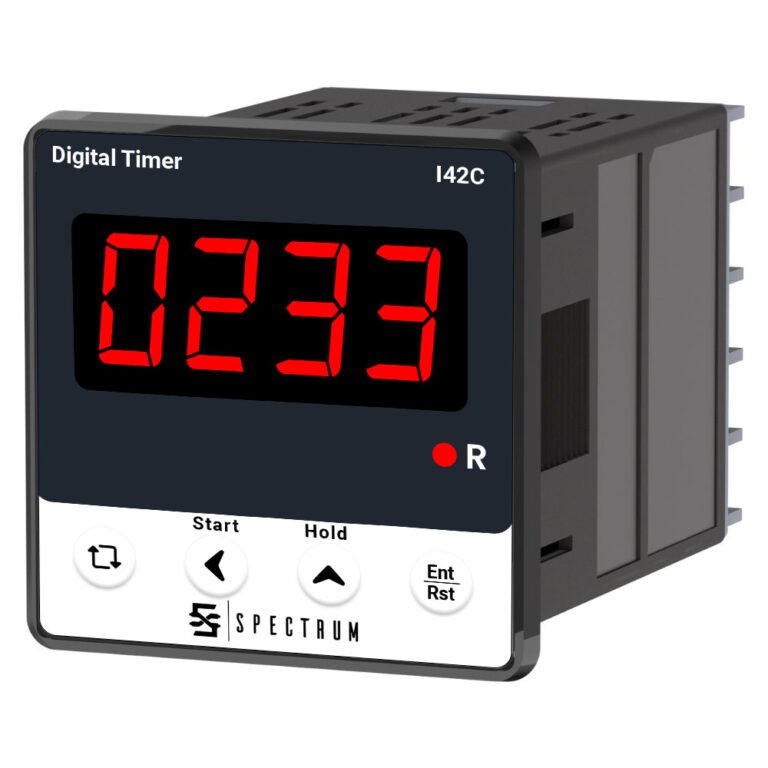

I42C

I42C

Inputs

Start Pulse : Proxy NPN/Micro switch/Limit Switch
Type : Power ON/ Eable /Trigger

Range

Sec : 0 ~ 9.9999/999.9/9999 Sec
Min : 0 ~ 99.59/999.9/9999 Min/Sec
Hr : 0 ~ 99.59/999.9/9999 Hr/Min

Outputs

Relay : 2-Relay,
Rating : 1C / O , 10A, 230 Vac

Set Point

1 Set Point : Delayed ON / Instant ON Configurable
2 Set Point : Cyclic Mode

Operating Mode

Auto/Manul Via Two Way Rottary Switch Configurable

Counting Direction

Up/Down Configurable

Memory

Memory Retention Configurable

Reset

Manual Reset facility from Front & Back

Supply

230V AC, 50 Hz Linear

Body Type

ABS Polycarbonate

Operating Temp

0 to 55 Degree Celsius

Relative Humidity

Up to 95% RH Non Condensing
