Size : 48×48
Panel Cutout : 44×44
Display : Upper :7 Segment, 4 Digit, 0.56″, Red LED

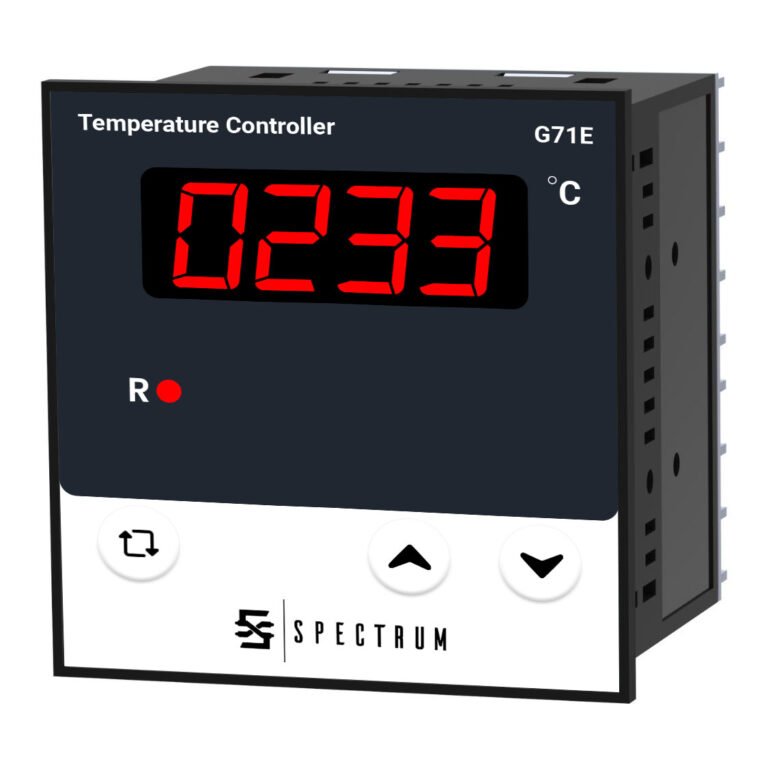

Size : 72×72
Panel Cutout : 68×68
Display : Upper : 7 Segment, 4 Digit, 0.56″, Red LED

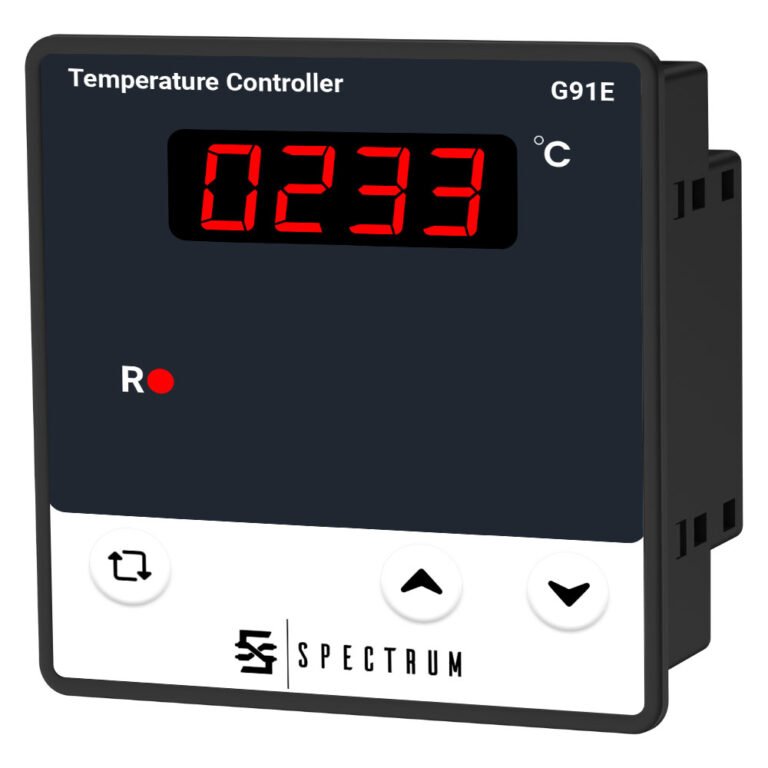

Size : 96×96
Panel Cutout : 92×92
Display : Upper : 7 Segment, 4 Digit, 0.56″, Red LED
Sensor : J/K/PT.100 (2W/ 3W) Factory Set
Range : J(0-600), K(0-1200), Pt-100(2W/3W) (0-400) Degree Celsius
Output 1 : 1- Relay,
Rating : 1C / O , 5A, 230 Vac
SSR/Buzzer : 12V DC (30 mA DC) Approximately (Factory Set)
1 Set Points
On-Off / TP Configurable
Heat/Cool (Configurable)
230V AC 50 Hz LPS
± 1% of FSD
J&K 1°C Fix, Pt-100 2W/3W 1°C/0.1°C
ABS Polycarbonate
0 to 55 Degree Celsius
Up to 95% RH Non Condensing
